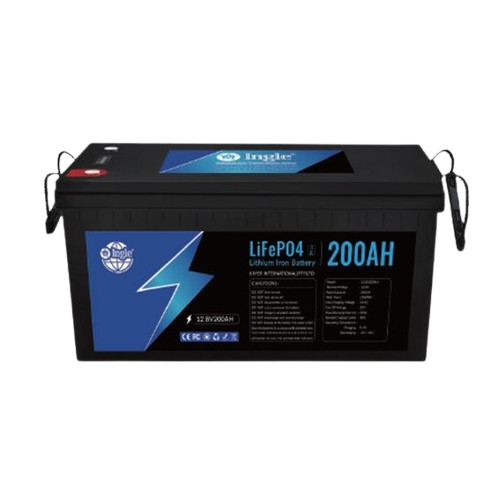

12.8v 200ah 2.56Kwh Ingle Lithium Battery

12.8v 200ah 2.56Kwh Ingle Lithium Battery

12V 200Ah LiFePo4 Single Battery Module is a Lead-Acid/AGM /Gel batter battery replacement.

SPECIFICATIONS

12V 200Ah LiFePo4 Single Battery Module

Product Type Wall Mountable 12V 200Ah LiFePo4 Single Battery Module

Rated Capacity 2.56kwh

Nominal Voltage 12.8V

Charge cut-off voltage 14.6v

Discharge cut-off voltage 10v

Discharge current 150A

Charging working temperature 0-45C

Dimensions (LxWxH): 522 X 240 X 222 mm

Weight: Approx. 16.35kg

Can Be Connected in Series & Parallel

4 series 4 parallel

4000 cycles @ 50% Depth Of Discharge (DOD)

24 Months Warranty

Warranties:

All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
